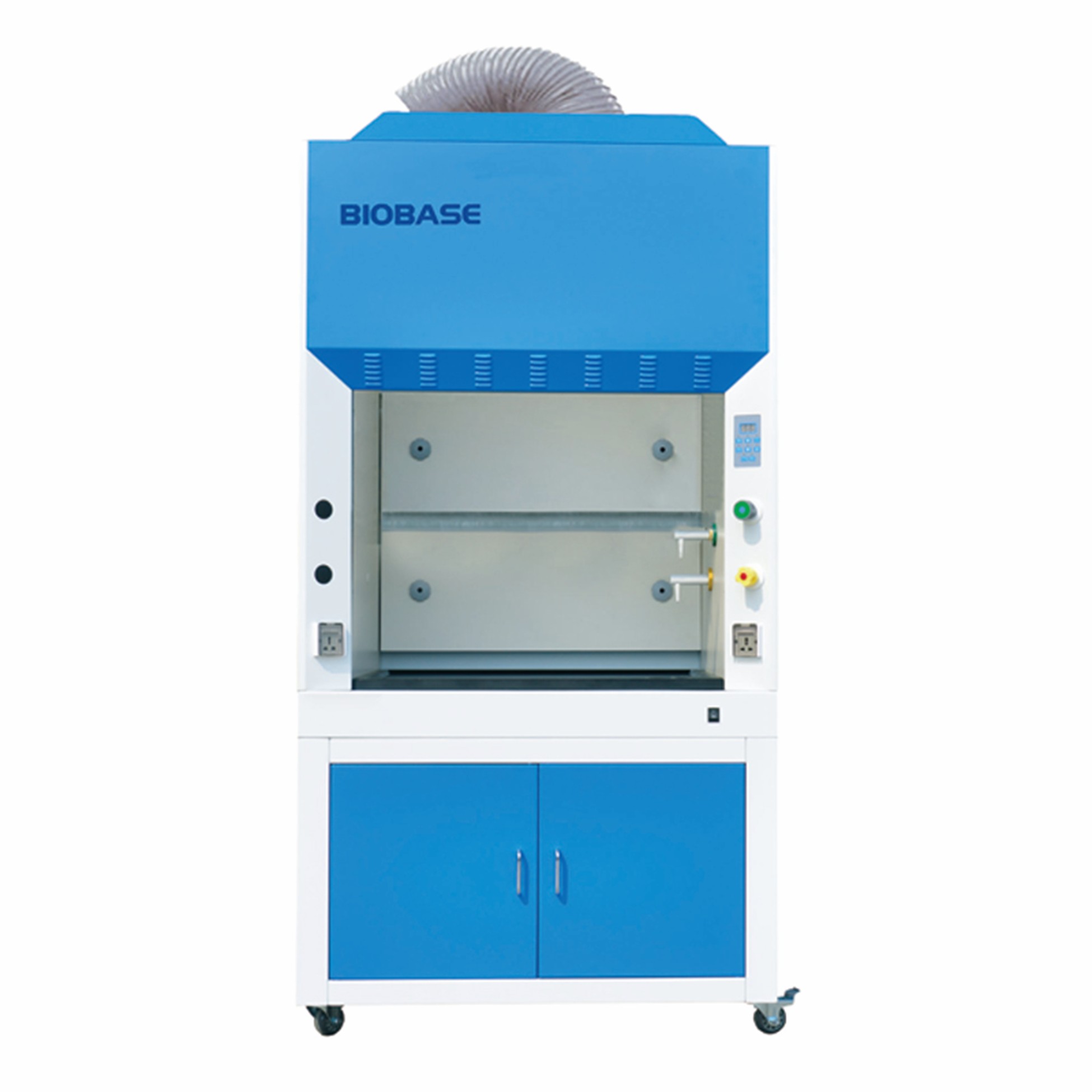

Biobase Ducted Laboratory Fume Hood

The Biobase Ducted Fume Hood is a vital safety fixture in modern laboratories, designed to protect personnel from hazardous fumes, vapors, and particulates. This vertical air-flow cabinet captures airborne contaminants and expels them through a duct system, preventing their release into the lab environment.

Built with a high-quality cold-rolled steel frame and coated with corrosion-resistant epoxy powder, this unit offers exceptional durability and performance. The transparent tempered glass sash allows clear visibility of procedures while offering an adjustable working height. Equipped with water and gas taps, electrical outlets, and a user-friendly control panel, this fume hood is an ideal choice for chemical, pharmaceutical, educational, and industrial labs.

Key Features

• High-quality cold-rolled steel with epoxy coating

• Transparent sliding sash made of tempered glass

• Efficient ducted ventilation system

• Built-in water and gas taps

• Interior lighting for improved visibility

• Control panel with airflow monitor and fan switch

• Built-in electrical sockets

• Lockable cabinet with chemical-resistant interior

• Mounted on casters for mobility (optional)

Specifications (Example)

• Model: Biobase FH1000

• External Dimensions: 1000 × 800 × 2350 mm

• Internal Work Area: 900 × 650 × 600 mm

• Air Velocity: 0.3–0.8 m/s adjustable

• Power Supply: AC 220V/50Hz

• Lighting: ≥800 Lux

• Noise Level: ≤60 dB

• Exhaust Duct: Flexible PVC (5 meters included)

• Material: Cold-rolled steel with epoxy coating

• Sash: Vertical, tempered glass

Applications

• Chemical and biological laboratories

• Pharmaceutical manufacturing

• Research and education institutions

• Industrial quality control labs
